| الاسم التجاري: | HACEN |
| رقم الطراز: | رابط LC 3.0mm |
| الـ MOQ: | 3000pcs |
| السعر: | 0.11-0.16 |
| شروط الدفع: | L/C ، T/T ، Western Union |
| القدرة على التوريد: | يعتمد على التجاويف والأدوات |

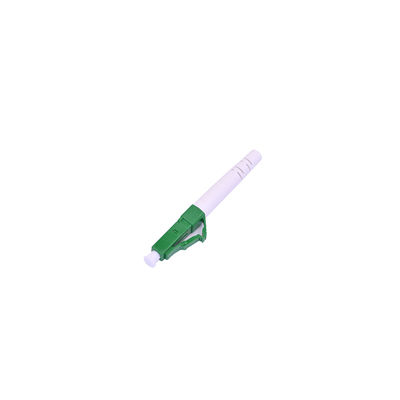

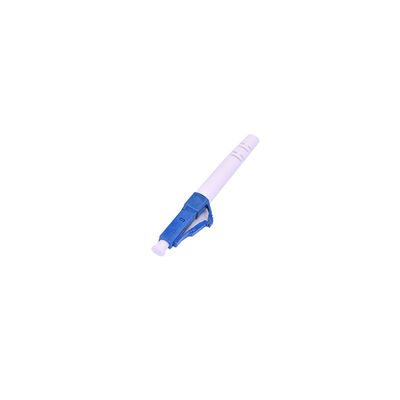

Simplex Fiber Connector LC UPC 3.0mm Round Boot SM /MM Version For FTTH Network
| LC Fiber Connector | SM UPC/APC | MM |
| Insertion Loss Typical | 0.15dB | 0.1dB |
| Insertion Loss Max | 0.3dB | 0.3dB |
| Return Loss Typical | APC≥65 UPC≥55 |
≥25 |
| Ferrule Size | 125.3um | 127um |
LC Simplex Connectors
-Efficient Design: Ultra-compact SFF for space optimization.
-Versatile: Compatible with 0.9mm, 2.0mm, and 3.0mm boot connectors.
-Applications: Suitable for single and multi-mode applications.
Availability
-The connector can be supplied as a pre-assembled one-piece connector or as connector kits.
-Housing kits without ferrule are available.
-PC/ APC /UPC are available
-Different colors and size are available
